Temperature Display

HY-530

HY-530

  • S__50667570 _2_.png
  • 202403041447535ll0c.png
DETAIL

Product Description

Description
Used for the commercial refrigerators or equipement, with microcomputers controlling and accurately displaying the temperature. (Optimization of temperature senser)

Specification:

  • Product Model: HY-530
  • Temperature Control Range: -50℃ ~ +80℃
  • Screen Display: Single Screen Display
  • LED Display:Red 2Bit (seven-segment display)
  • Temperature Measurement Accuracy: ±1 °C (-50 °C-70 °C) (工作環境溫度/溫度測量精準度)
  • Resolution: 1°C
  • Optional Power Supply: 90V ~ 240V / AC / 50 ~ 60Hz
  • Front Panel Size/前面板尺寸:13.3(L)* 3(W)cm
  • Mounting Size/安裝尺寸: 137(L)* 32(W)* 28(D)mm3
  • Sensor Length/感測器長度: 150cm (include the probe)
  • Power Cable: 30cm
  • Alarm mode: No


Pacakge:

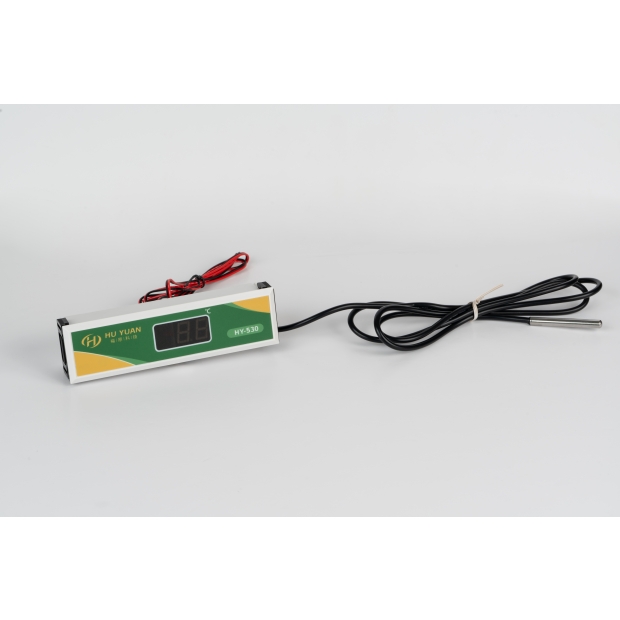

  • 1x HY-530 Controller (with power cable and senser)
  • 2 x Accessories
  • 1x Manual
