Description
Used for the commercial refrigerators or equipement, with microcomputers controlling and accurately displaying the temperature. (Optimization of temperature senser)
Specification:

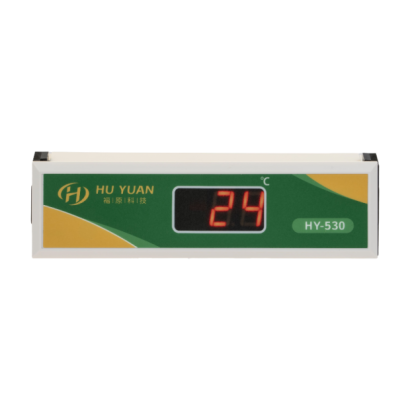

Product Model: HY-530
Temperature Control Range: -50℃ ~ +80℃
Screen Display: Single Screen Display
LED Display:Red 2Bit (seven-segment display)
Temperature Measurement Accuracy: ±1 °C (-50 °C-70 °C) (工作環境溫度/溫度測量精準度)
Resolution: 1°C
Optional Power Supply: 90V ~ 240V / AC / 50 ~ 60Hz
Front Panel Size/前面板尺寸：13.3(L)* 3(W)cm
Mounting Size/安裝尺寸: 137(L)* 32(W)* 28(D)mm3
Sensor Length/感測器長度: 150cm (include the probe)
Power Cable: 30cm
Alarm mode: No
Pacakge:
1x HY-530 Controller (with power cable and senser)
2 x Accessories
1x Manual
Electronic temperature controller which used for the commercial refrigerators or equipement, with microcomputers controlling and accurately displaying the temperature. (Optimization of temperature senser)
Electronic temperature controller which used for the commercial refrigerators or equipement, with microcomputers controlling and accurately displaying the temperature. (Optimization of temperature senser)
HY-530
EGO Thermostat (30-110 Degree)
HY-210

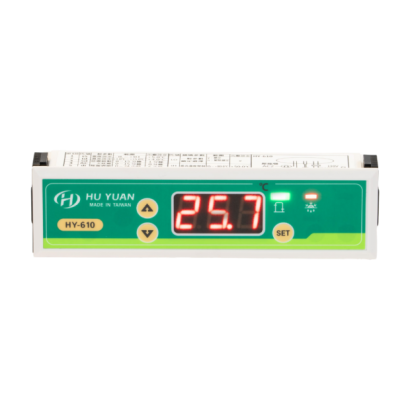

HY-610
