Product Description

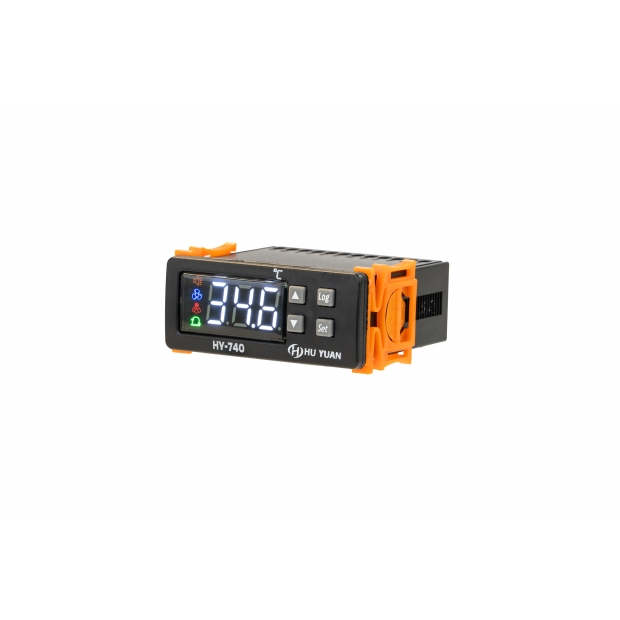

Product Model: HY-740
Temperature Control Range: −65°C ~ +65°C

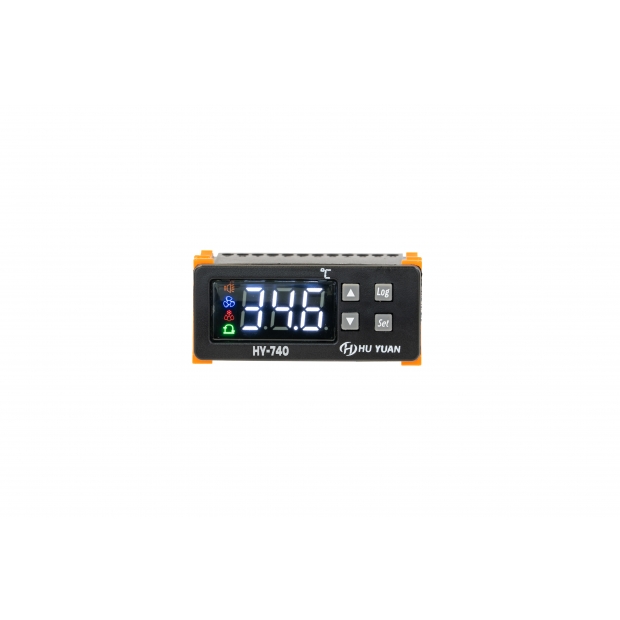

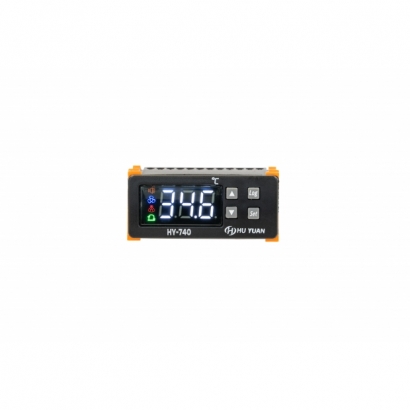

Screen Display: High-brightness single LED display
LED Display: Red 3-bit (seven-segment display)
Temperature Measurement Accuracy: ±1°C (Operating environment −15°C ~ +70°C)
Resolution: 0.1°C
Optional Power Supply: 12V / AC / DC / 50–60Hz

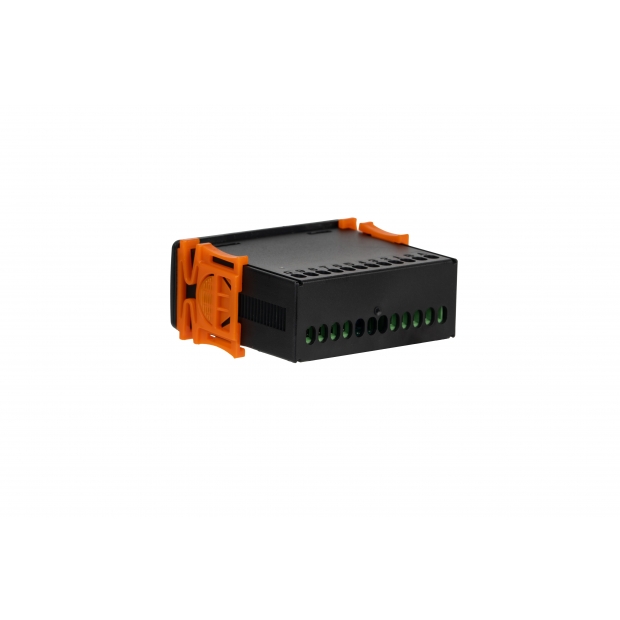

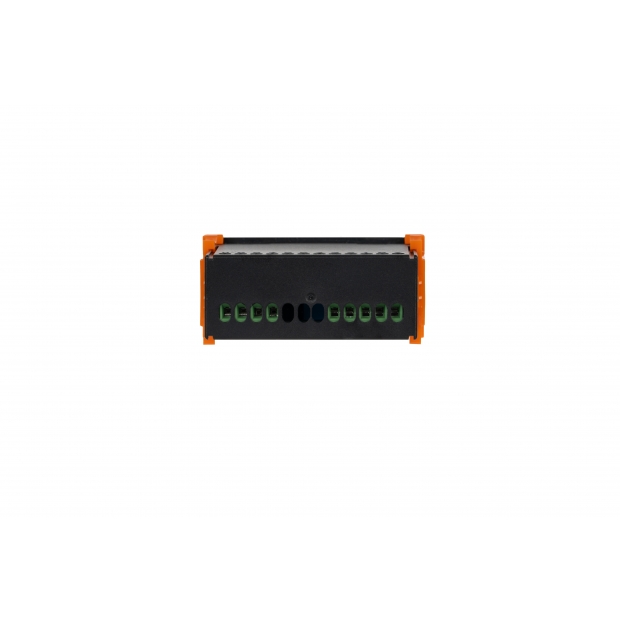

Installation Method: Panel mount type
Mounting Size: 70 × 28.2 × 65 mm³
Working Environment Temperature: −15°C ~ +70°C
Compressor Output: 30A / 250V (purely resistive load)
Defrost/Fan Output: 10A / 250V (purely resistive load)
Sensor Length: 150cm (with 5 cm copper probe)
Display Color Indicator:
-
Green – Compressor status (flashing: ready / solid: running)
-
Yellow – Defrost status (flashing: defrost temp reached / solid: defrosting)
-
Blue – Fan operation (fan and compressor are flashing at the same time: dropping / solid: operation)
-
Red – Temperature alarm or sensor fault
Features:
-
Supports both electric (EL) and hot-gas (HS) defrost
-
Adjustable delay start and defrost settings
-
Alarm for high/low temperature and sensor error
-
Total running hour display
-
Forced defrost and defrost drip-time functions
-
Parameter lock function
Package Includes:
1 × HY-740 Controller (with power cable and sensor*2)
1 × Compressor
2 × Mounting accessories
1 × User manual
