Electronic Temperature Controller

  1. Electronic Temperature Controller
one two four
  • Read More

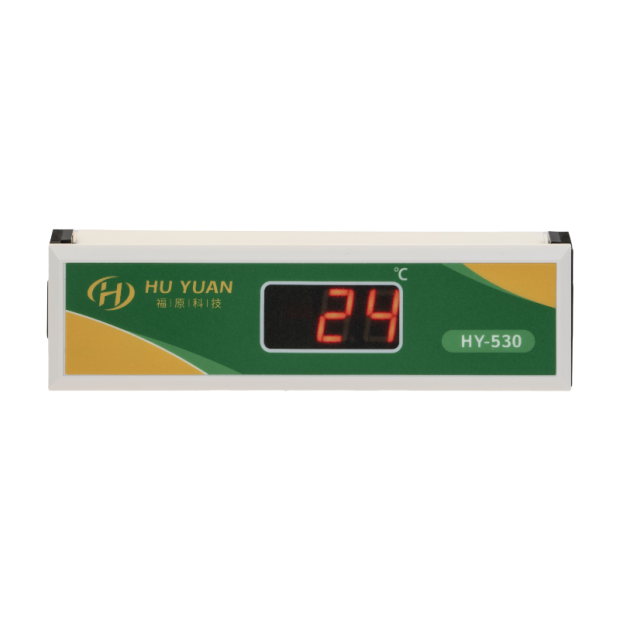

    HY-530

    Product Description



    Description
    Used for the commercial refrigerators or equipement, with microcomputers controlling and accurately displaying the temperature. (Optimization of temperature senser)

    Specification:




    Product Model: HY-530
    Temperature Control Range: -50℃ ~ +80℃
    Screen Display: Single Screen Display
    LED Display:Red 2Bit (seven-segment display)
    Temperature Measurement Accuracy: ±1 °C (-50 °C-70 °C) (工作環境溫度/溫度測量精準度)
    Resolution: 1°C
    Optional Power Supply: 90V ~ 240V / AC / 50 ~ 60Hz
    Front Panel Size/前面板尺寸：13.3(L)* 3(W)cm
    Mounting Size/安裝尺寸: 137(L)* 32(W)* 28(D)mm3
    Sensor Length/感測器長度: 150cm (include the probe)
    Power Cable: 30cm
    Alarm mode: No







    Pacakge:



    1x HY-530 Controller (with power cable and senser)
    2 x Accessories
    1x Manual




    Download
  • Read More

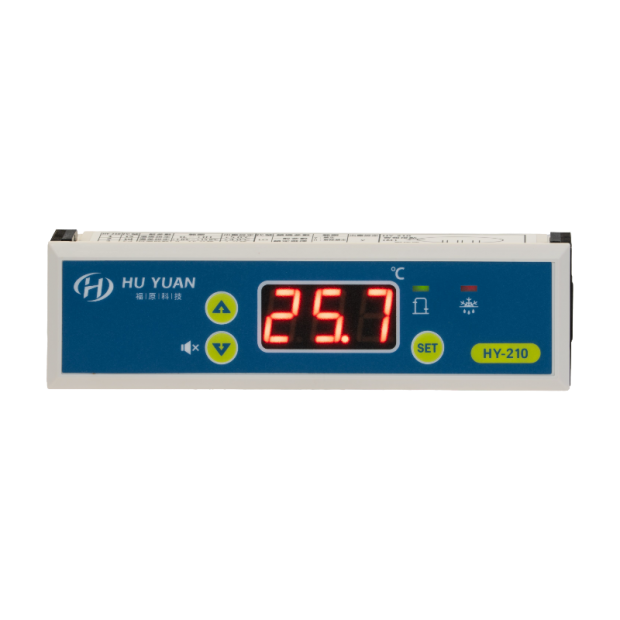

    HY-210

    Electronic temperature controller which used for the commercial refrigerators or equipement, with microcomputers controlling and accurately displaying the temperature. (Optimization of temperature senser)
  • Read More

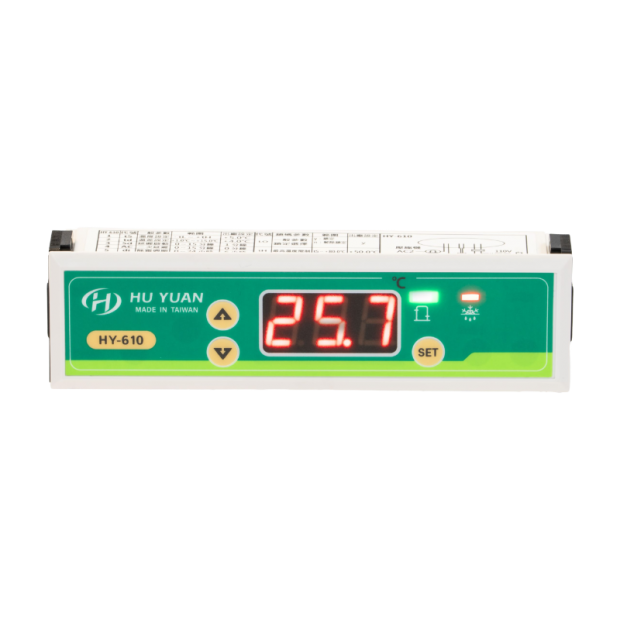

    HY-610

    Electronic temperature controller which used for the commercial refrigerators or equipement, with microcomputers controlling and accurately displaying the temperature. (Optimization of temperature senser)
