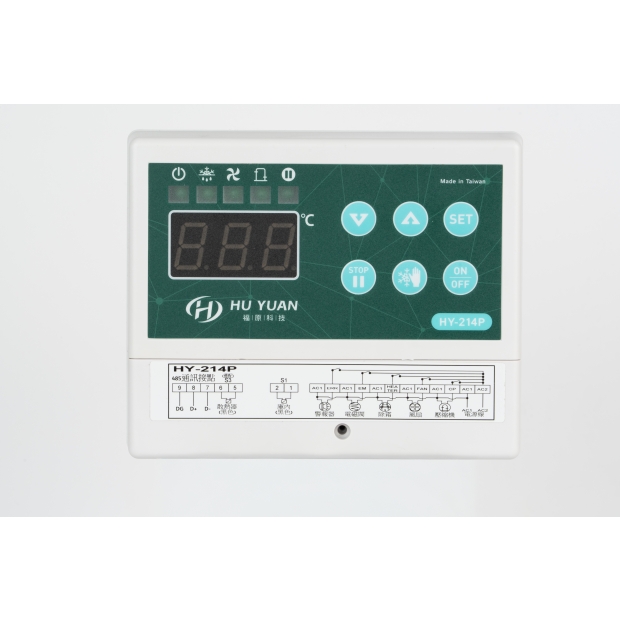

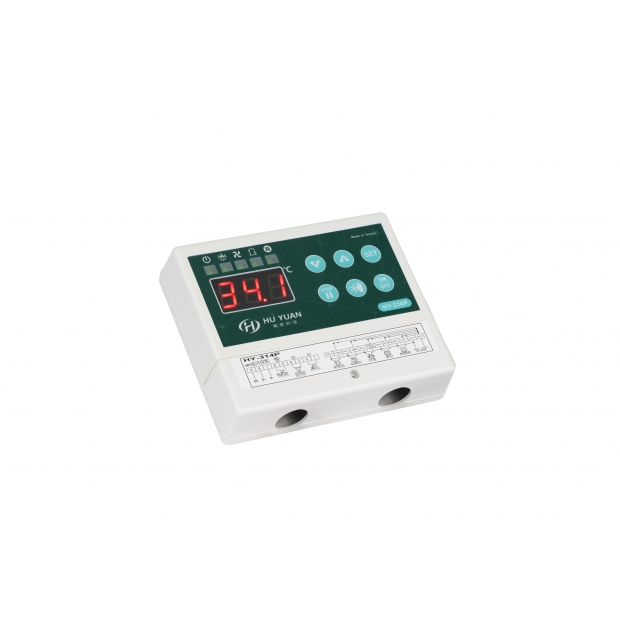

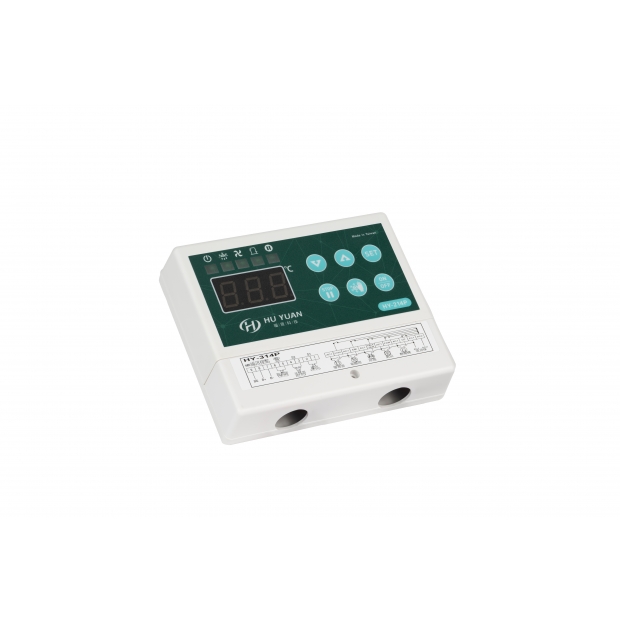

HY-214P

HY-214P

Used for the commercial refrigerators or equipment, with microcomputers controlling and accurately displaying the temperature. (Optimization of temperature senser
螢幕擷取畫面 2024-10-23 144127.png
/
DETAIL

Product Description

Description
Used for the commercial refrigerators or equipement, with microcomputers controlling and accurately displaying the temperature. (Optimization of temperature senser)


Specification:

  • Product Model: HY-214P
  • Temperature Control Range: -50℃ ~ +80℃
  • Screen Display: Single Screen Display
  • LED Display:Red 3Bit (seven-segment display)
  • Temperature Measurement Accuracy: ±1 °C (-15℃ ~ +70℃) (工作環境溫度/精準度)
  • Resolution: 0.1°C (解析度)
  • Optional Power Supply: 100~240V / AC / 50 ~ 60Hz
  • Front Panel Size/前面板尺寸：149(L)* 74(W)mm
  • Mounting Size/安裝尺寸: 171(L)* 141(W)* 39(D)mm3
  • Sensor Length/感測器長度: 150cm (include the probe)
  • Power Cable: 30cm
  • Alarm mode: No
  • Compressor:  Yes(10A / 250V Purely resistive load)

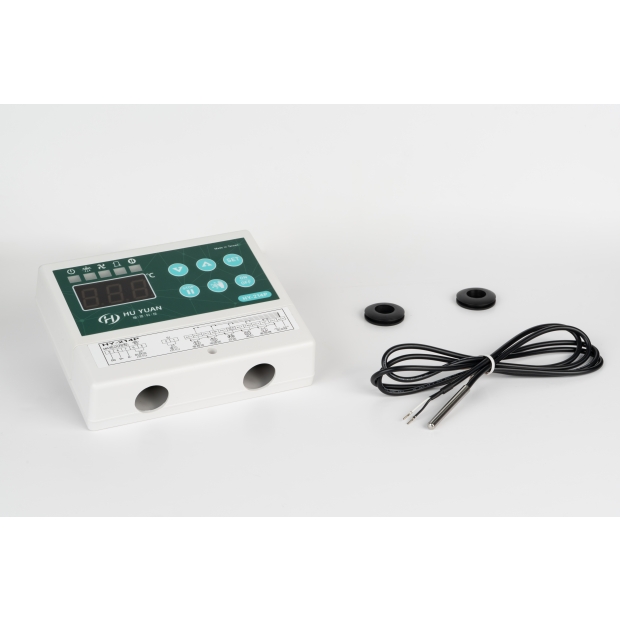

Pacakge:
  • 1x HY-214P Controller
  • 2 x Accessories (Comes with two black silicone rings/one 61L sensor(B))
  • 1x Manual
