Refrigeration Series

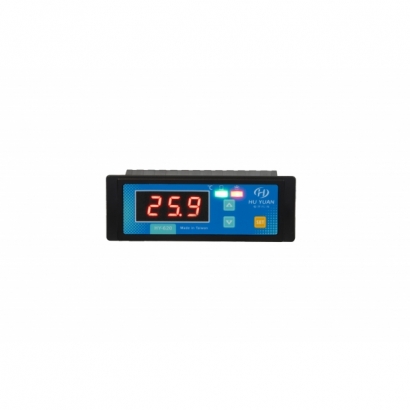

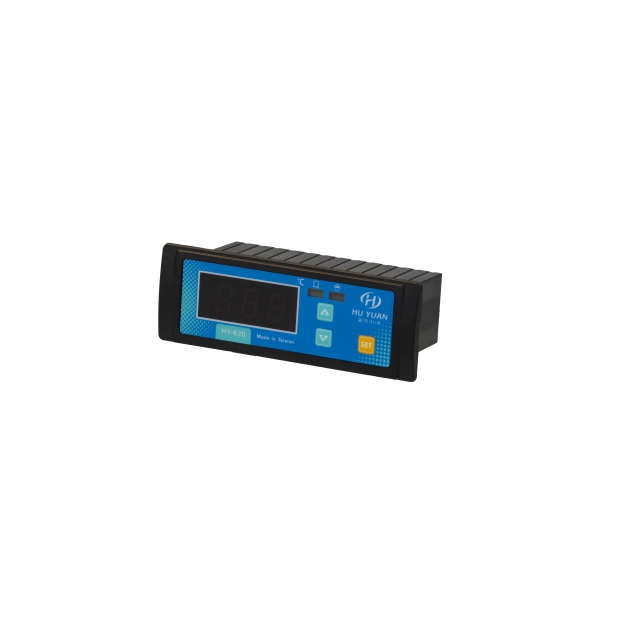

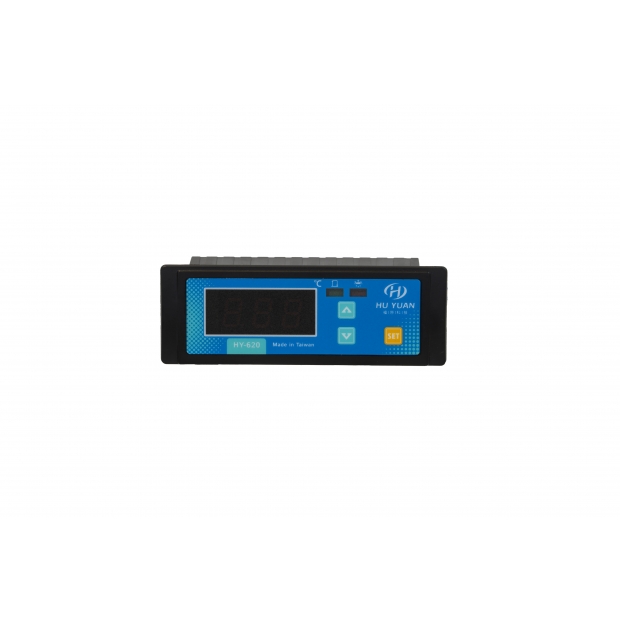

HY-620

HY-620

Designed for commercial refrigeration equipment, featuring microcomputer control and precise temperature display. Optimized for high-accuracy temperature sensing.
DETAIL

Product Description

Description
Commercial refrigeration controller with microcomputer precision and optimized temperature sensing.

Specification:

  • Product Model: HY-620
  • Temperature Control Range: -50℃ ~ +80℃
  • Screen Display: Single Screen Display
  • LED Display:Red 3Bit (seven-segment display)
  • Temperature Measurement Accuracy: ±1 °C (-15℃ ~ +70℃) (工作環境溫度/精準度)
  • Resolution: 0.1°C (解析度)
  • Optional Power Supply: 12V / AC / DC / 50 ~ 60Hz
  • Front Panel Size/前面板尺寸:13.3(L)* 3(W)cm
  • Mounting Size/安裝尺寸: 81(L)* 25.5(W)* 39(D)mm3
  • Sensor Length/感測器長度: 150cm (include the probe)
  • Power Cable: 30cm
  • Alarm mode: No
  • Compressor:  Yes(30A / 240V Purely resistive load)

Pacakge:
  • 1x HY-620 Controller (with power cable and senser)
  • 1 x Compressor
  • 1x Manual
