Freezer Series

  1. Digital Electronic Temperature Controller
  2. Freezer Series

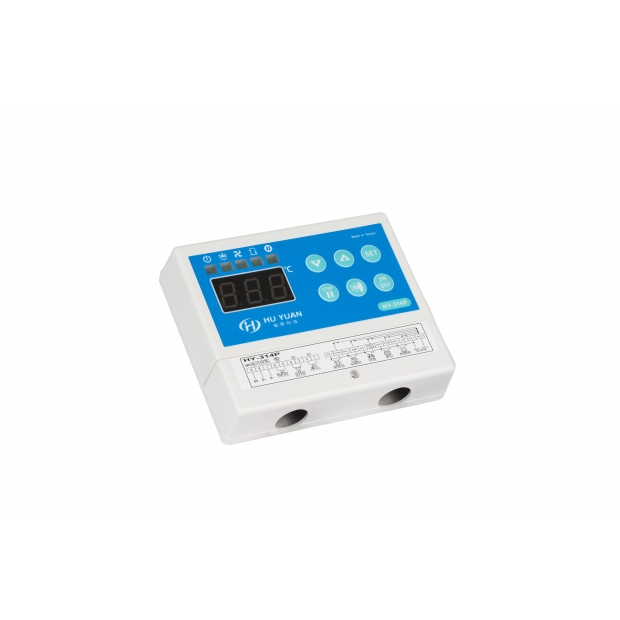

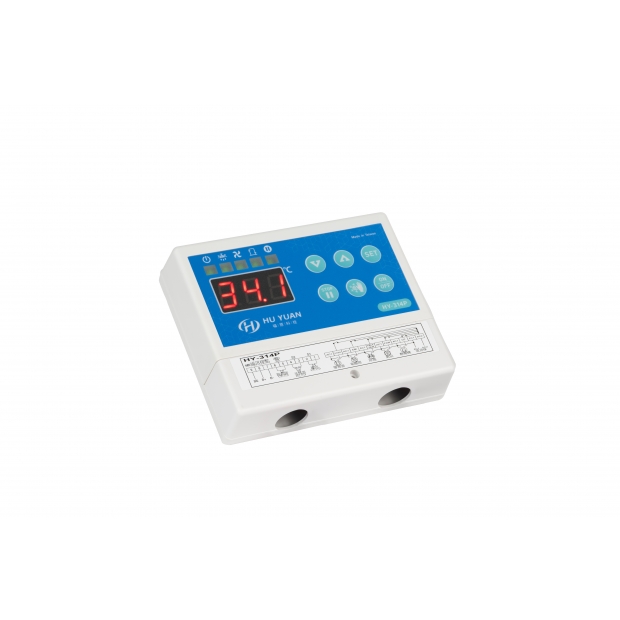

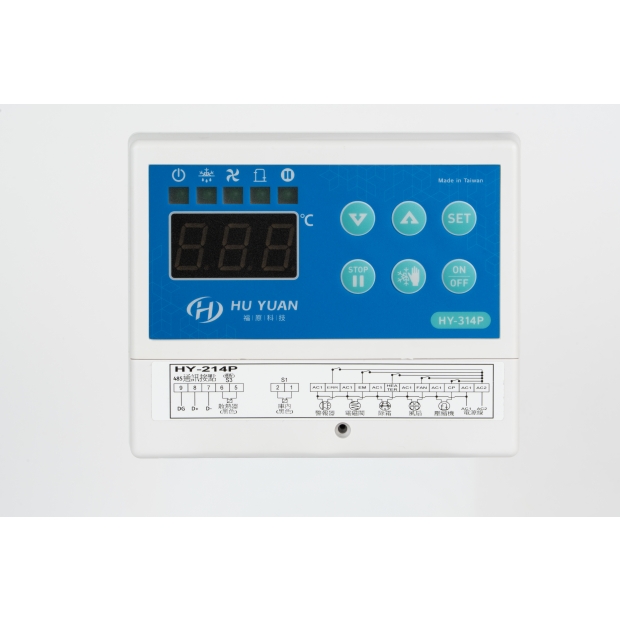

HY-314P

HY-314P

Designed for commercial freezer equipment, featuring microcomputer control and precise temperature display. Optimized for high-accuracy temperature sensing.
/
DETAIL

Product Description

Description
Used for the commercial frezzer equipements, with microcomputers controlling and accurately displaying the temperature. (Optimization of temperature senser)


Specification:

  • Product Model: HY-314P
  • Temperature Control Range: -50℃ ~ +80℃
  • Screen Display: Single Screen Display
  • LED Display:Red 3Bit (seven-segment display)
  • Temperature Measurement Accuracy: ±1 °C (-15℃ ~ +70℃) (工作環境溫度/精準度)
  • Resolution: 0.1°C (解析度)
  • Optional Power Supply: 100~240V / AC / 50 ~ 60Hz
  • Front Panel Size/前面板尺寸：149(L)* 74(W)mm
  • Mounting Size/安裝尺寸: 171(L)* 141(W)* 39(D)mm3
  • Sensor Length/感測器長度: 150cm (include the probe)
  • Power Cable: 30cm
  • Alarm mode: No
  • Compressor:  Yes(10A / 250V Purely resistive load)

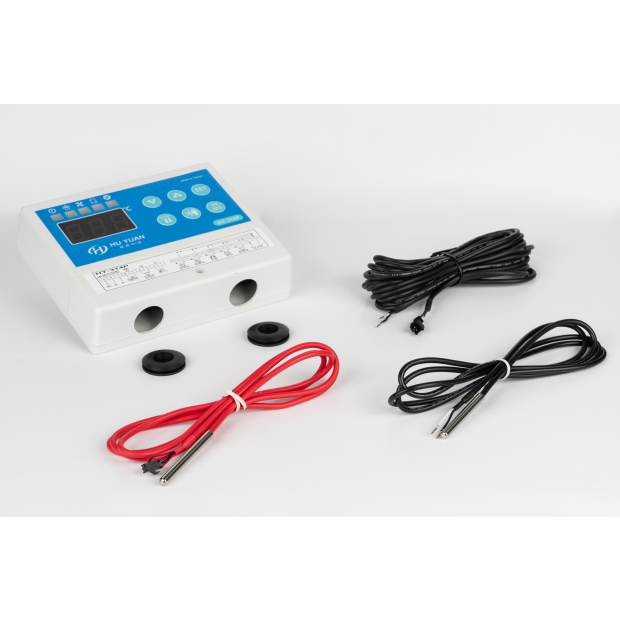

Pacakge:
  • 1x HY-314P Controller
  • 4 x Accessories(Comes with two black silicone rings/one 22BL sensor(R)/one 61L sensor(B)/one extention line(B))
  • 1x Manual

說明書下載
